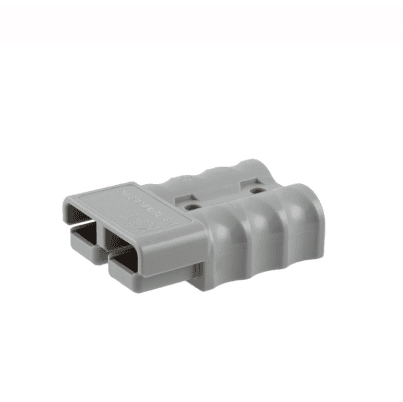

Tan 4x4 Brad Harrison 175 Amp Grey
High-Current Power Connection for Winches & Recovery The 175A Grey connector is the heavy-duty standard for high-amperage applications. Designed for winches, jumper leads, and industrial battery banks, it handles massive current loads with minimal voltage drop. The "genderless" housing allows for quick, secure mating with any other grey 175A unit.
Primary Use: Winch power leads, heavy-duty jump-starting, and dual-battery systems for trucks.
Key Spec: Rated up to 175 Amps; fits up to 50mm² (0 AWG) cable.
Durability: Impact-resistant polycarbonate with silver-plated copper contacts for maximum conductivity.
Product Details
Long Description: 175A Grey Brad Harrison Connector
OverviewThe 175A Grey Brad Harrison (Anderson-type) connector is a rugged, high-current power solution engineered for environments where standard connectors fail. Built for the demanding South African 4x4, mining, and marine industries, this connector provides a low-resistance path for high-drain equipment like front and rear-mounted winches.

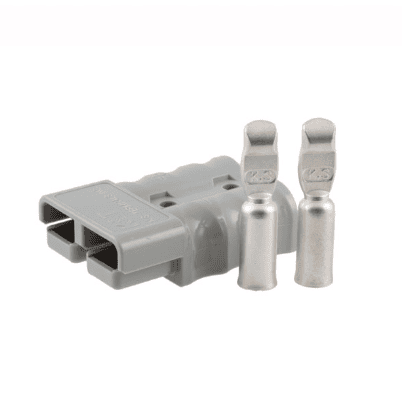

Uncompromising Power Delivery At the heart of the 175A connector are two silver-plated copper terminals. The silver plating ensures superior conductivity and prevents oxidation, which is critical when pulling the extreme currents required by a stalled winch or a heavy-duty engine start. The sacrificial "wiping" action of the contacts during connection ensures the mating surfaces stay clean for every use.
Mechanical Reliability The housing is molded from high-impact, UV-stabilized polycarbonate. Unlike cheap Tier 1 equivalents that can crack under vibration or heat, this housing is designed to survive the engine bay and the trail. The internal stainless steel leaf springs provide constant pressure on the contacts, ensuring a vibration-proof connection that won't shake loose on corrugated roads.
Safety and Compatibility The grey housing features a unique mechanical "key" that only allows it to mate with other 175A Grey connectors. This prevents the dangerous mistake of connecting a 12V system to a different voltage circuit (such as a 24V or 48V red/blue system). The genderless design means you don’t need to worry about "male" or "female" ends—two identical plugs simply flip to connect.
Technical Specifications:
Current Rating: 175A (Continuous).
Voltage Rating: Up to 600V.
Compatible Cable Size: 35mm² to 50mm² (2 AWG to 0 AWG).
Operating Temperature: -20°C to 105°C.
Mating Cycles: Rated for 10,000+ connects/disconnects.
